RT116JE Crawler Mobile Jaw Crushing Plant
RT116JE Crawler Mobile Jaw Crushing Plant-1.jpg

RT116JE Crawler Mobile Jaw Crushing Plant

Runtian mobile jaw crusher has compact structure, large crushing ratio, good working stability and low maintenance cost. The main frame has an excellent engagement angle and large stroke for hard rock processing, the wide feeding port provides a large capacity and the height of the chassis makes the equipment well suited for complex terrain. The equipment is easy to operate, transport and relocate, and can be used for sand & gravel aggregate production and environmental protection crushing.

    Contact us
    product details
    product description

    Product Parameters

    Feeding Device Max.feeding Size                  700mm
    Feeding Height                   4100mm
    Hopper Volume                         9m³
    Feeding Capacity               170-310t/h
    Vibrating Feeder Vibrating Motor Power            2*7.5kW
    Crusher Crusher Model                        C116
    Crusher Motor Power                132kW
    De-Soiling Conveying Belt Belt Width                       B650mm
    Power                                4kW
    Main Conveying Belt Belt Width                      B1000mm
    Power                                15kW
    Iron Removal Device Iron Remover                     RCYQ-10
    Power                                3kW
    Power Device Motor Power                        103kW
    Traveling Motor                 ltaly PMP
    Whole Machine Total Power                        172kW
    Total Weight                          50t
    Working Mode            External power supply
    Working Dimension 15.8mx4.3mx4.1m
    Transportation Dimension 15.8mx3.4mx3.8m

    Product Characteristics

    01

    Powerful Crusher

    The modular and non-welded body frame gives the equipment maximum fatigue resistance and reliability, The high abrasion resistance good impact resistance of wear parts and tooth plate, combined with high quality bearings, can ensure the excellent crushing performance. V-shaped symmetrical crushing cavity design is used, featuring deep crushing cavity, large processing capacity and low energy consumption.

    02

    Mobility and Flexibility

    The whole machine is designed according to the national road transport standard with integrated transport, which saves transportation cost for users. The special crawler drive mechanism allows the machine to move flexibly in rough and uneven terrain.

    03

    Proper Frame layout

    The center of gravity of the whole vehicle is so stable that the vehicle could climb the slope with an angle of up to 20degrees.The wear parts of the jaw crusher could be easily replaced, which greatly facilitates the operators.

    04

    Integrated Inverter System

    Full consideration has been given to dust-proof shock-resistance,and high & low temperatures of the inverter.

    05

    Simple Maintenance

    There is a safety observation platform around the feeding hopper and the crusher, which can be used to learn about the feeding situation and make the maintenance and repair more convenient.

    06

    Advanced Control System

    Wireless remote control + local operation control mode is used with high-resolution display, which makes the visualization operation more convenient.

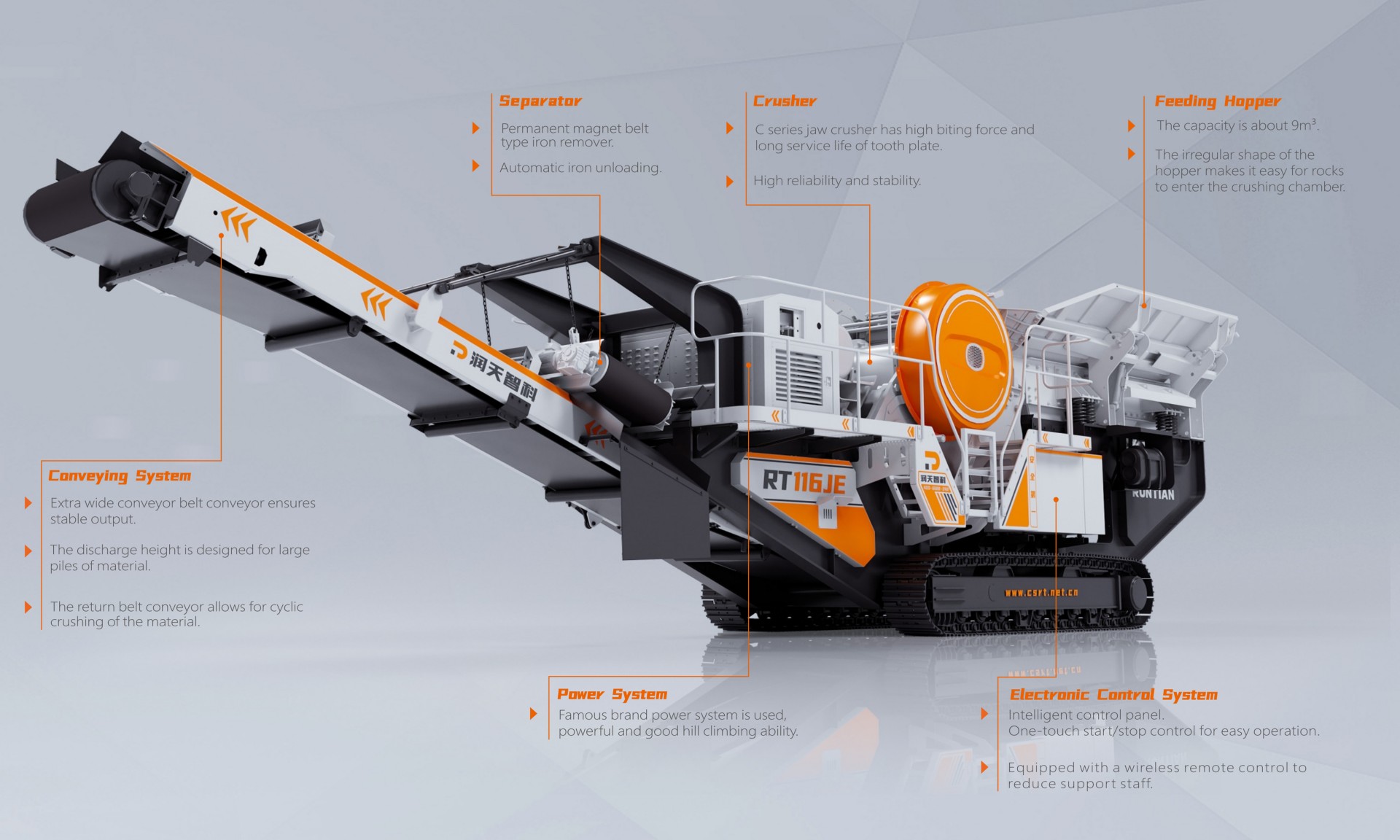

    Function module

    RT116JE-1

    01

    Conveying System

    Extra wide conveyor belt ensures stable output.
    The discharge height is designed for large piles of material, to avoid frequent material transfer.
    The return belt conveyor allows for cyclic crushing of the material.

    02

    Separator

    Permanent magnet belt type iron remover.
    Automatic iron unloading.

    03

    Crusher

    C series jaw crusher has high biting force and long service life of tooth plate.
    High reliability and stability.

    04

    Feeding Hopper

    The capacity is about 7m3.
    The irregular shape of the hopper makes it easy for rocks to enter the crushing chamber.

    05

    Power System

    Famous international brand power system is used powerful and good hill climbing ability.

    06

    Electronic Control System

    Intelligent control panel One-key start/stop control for easy operation.
    Equipped with a wireless remote control to reduce auxiliary staff.
