RTPF350DS Crawler Mobile Impact Crushing Plant
RTPF350DS Crawler Mobile lmpact Crushing Plant.jpg

RTPF350DS Crawler Mobile Impact Crushing Plant

The Runtanzhike crawler mobile counter crushing station has a compact and integrated design, with a small operating area. The crushing host adopts new manufacturing  technology and unique structural design, which achieves a higher crushing ratio and stronger crushing capacity, The processed products are cuboid-shaped & with no tension or cracks, and have a good particle shape. The discharge particle size can be adjusted hydraulically, allowing for diversified crushing specifications. The entire machine is driven by tracks, with strong power and convenient transportation, suitable for complex and varied construction environments.

Application scenario

Widely used in coarse crushing and medium crushing in various medium hardness crushing process. Crushing of all kinds of mine rocks: Highway railway water conservancy electricity construction and other industries Production of sand and stone for construction purposes: A kinds of slags, cave slags, waste asphalt concrete, tailings and waste rock crushing and recycling.

    Contact us
    product details
    product description

    Product Parameters

    Feeding Device Max.feding Size                   600mm
    Hopper Volume                        5m³
    Vibrating Feeder Vibrating Motor Power            2*5.5kW
    Crusher Crusher Model                     Np1313
    Crusher Motor Power               250kW
    Main Conveying Belt Belt Width                      B1000mm
    Power                                15kW
    Mixed Materal Conveying Belt Belt Width                      B1000mm
    Power                                11kW
    Returned Material Conveying Belt Belt Width                       B650mm
    Power                              5.5kW
    Transmission Conveying Belt Belt Width                       B500mm
    Power                                3kW
    Power Device Motor Power                        103kW
    Traveling Motor                 ltaly PMP
    Whole Machine Total Power                        309kW
    Total Weight                          60t
    Working Mode            External power supply
    Working Dimension 18.3mx5.4mx4.8m
    Transportation Dimension 18.3mx3.2mx3.9m

    Product characteristics

    01

    Intelligent Technology to Prevent Stuck Materials

    The industrial controller can automatically control the feeding overload current enable automatic suspension and resumption of feeding, and can also be controlled manually to prevent the crusher machine from getting jammed with material and stopping.

    02

    Easy Maintenance

    There is a safety observation platform for the silo and host which can make the maintenance and overhaul more convenient.

    03

    Strong Crushing Host

    The RTPF series crushing machine perfectly combines a heavy rotor high wear-resistant material,and a well-designed crushing chamber significantly improving production capacity and product grain quality while reducing wear costs. Equipped with a fully hydraulic counter plate discharge port adjustment device, it offers more convenient operation.

    04

    Mobility and Flexibility

    The whole machine is designed according to the national road transportation standards, integral transportation saving transportation costs for users. The special crawler walking mechanism can travel flexibly in harsh and rugged terrain.

    05

    Efficient Pre-screening Device

    Through the pre treatment of raw materials by the pre-screening device, the viscous material can be discharged directly through the conveyor and the medium particle size material can be directly sent to the main conveyor which greatly reduces the wear of the crushing chamber and improves the output of the equipment.

    06

    Advanced Control System

    Using wireless remote control + local operation dual control mode, HD display screen, so that visual operation more convenient.

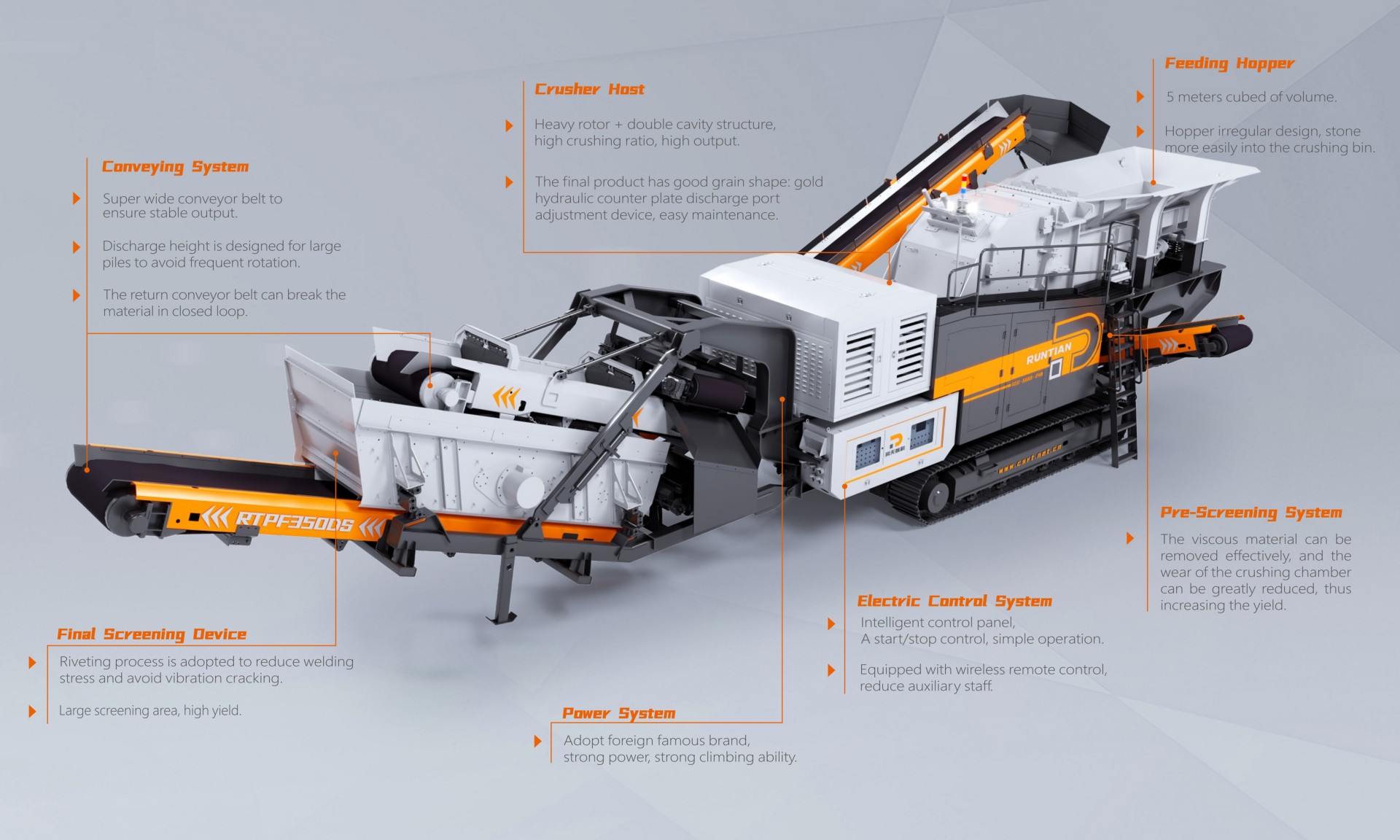

    Function module

    RT350

    01

    Conveying System

    Super wide conveyor belt to ensure stable output.
    Discharge height is designed for large piles to avoid frequent material transferring.
    The return conveyor belt can break the material in closed & cyclic loop.

    02

    Crusher Host

    Heavy rotor + Three-cavity structure high crushing ratio, high output. Particle shape.
    The final product has good grain shape: full hydraulic counter plate discharge port adjustment device, easy maintenance.

    03

    Feeding Hopper

    5 m3 cubed of volume.
    Hopper irregular design, stone more easily into the crushing bin.

    04

    Final Screening Device

    Riveting process is adopted to reduce welding stress and avoid vibration cracking. Side vibrating motor driving, avoid power loss easy maintenance.
    Large screening area, high yield.

    05

    Power System

    Adopt international famous brand strong power strong climbing ability.

    06

    Electric Control System

    Intelligent control panel One-key start/stop control, simple operation.
    Equipped with wireless remote control reducing auxiliary staff.

    07

    Pre-Screening System

    Effectively remove adhesive material, reducing the wear of crushing chamber thus increasing the yield.
